Dual directional coupler operates from 500 – 2500MHz

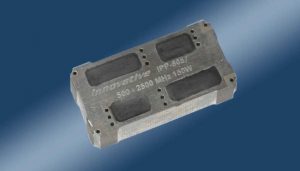

INNOVATIVE POWER PRODUCTS Model IPP-8057, a 150 watt, 33 dB, surface mount dual directional coupler operates from 500 – 2500MHz. Product’s broadband design provides separate coupled ports for both forward and reflected signals with internal terminations. Device is produced in a Surface Mount (SMD) package size of 0.500(W) x 1.000(L) x 0.139(H) inches and is designed to reduce the size, weight and cost of traditional connectorized couplers. Insertion loss is less than 0.25dB, main line VSWR is less than 1.25:1, coupled flatness is +/- 1.0dB and directivity is greater than 20dB making these couplers suitable for many commercial and military applications.
