Wire termination contacts accommodate 22-26 AWG wires

Stephen Law

Interconnect Engineering

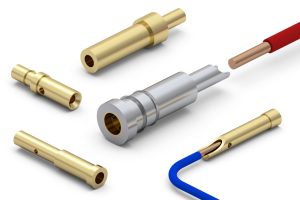

MILL-MAX Wire crimp and solder cup receptacles can accommodate wires from 22-26 AWG and accept mating pins in the popular .025” (.63 mm) – .040” (1.02mm) range. Devices provide solutions for solder terminations of disparate uses. Model 9177 is suitable for high current, rugged applications handling currents in the 15 amp range. Model 4485 can be used on pin-to-pin spacing down to 2mm. Three of the five parts have inspection holes to accommodate wire viewing and to promote plating coverage inside the wire termination holes. http://www.mill-max.com/PR667
