USB-based real-time spectrum analyzers deliver up to 7.5GHz frequency

Stephen Law

Test & Measurement spectrum analyzers test

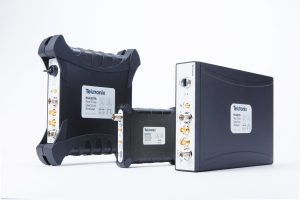

TEKTRONIX RSA500 and RSA600 series USB-based real-time spectrum analyzers with 4 higher-performance models targets design, spectrum management and wireless transmitter installation and maintenance applications. Units provide frequency coverage from 9kHz up to 7.5GHz with 40MHz acquisition bandwidth, a measurement dynamic range from -161dBm/Hz displayed average noise level and up to +30dBm maximum input. Both models have an optional tracking generator with an integrated internal bridge for basic device, cable and antenna testing. Through a standard USB 3.0 connection, units are operated from a desktop PC, laptop or tablet using an updated version of the full-featured SignalVu-PC software suite. http://www.tektronix.com
