Stainless steel wireway system protects cables in corrosive environments

Stephen Law

Automation / Robotics Environmental cable protection

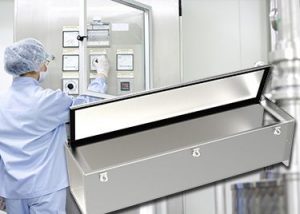

HAMMOND 1487SS modular pull-through wireway system consists of three cross-section sizes: 4 x 4, 6 x 6 and 8 x 8 inches, all with a smooth brushed stainless steel finish. Components are available in standard 12, 24, 36, 48, 60 and 120 inch straight lengths with an extensive range of fittings that enable required configurations to be constructed from standard elements.  System sections are formed from 14 gauge 304 stainless steel and are fitted with 10 gauge flanges at each end. The top of each straight section consists of a hinged cover, secured with easy to operate screw clamps to give access to the cables. System provides rapid installation, is sealed to NEMA Type 4X and IEC60529 IP66, and is constructed with stainless steel components allowing for effective use in wet, corrosive environments both indoors and outdoors. It is designed to enclose and protect electrical or network wiring from dirt, dust, oil and water, making it ideal for use in factories, warehouses and other locations where such contamination is likely to be present. http://www.hammfg.com/electrical/products/wireway/1487ss

Hammond MFG
