Real-time spectrum analyzers detect fast, short signals safely

EP&T Magazine

Electronics Test & Measurement analyzers Real-Time spectrum test

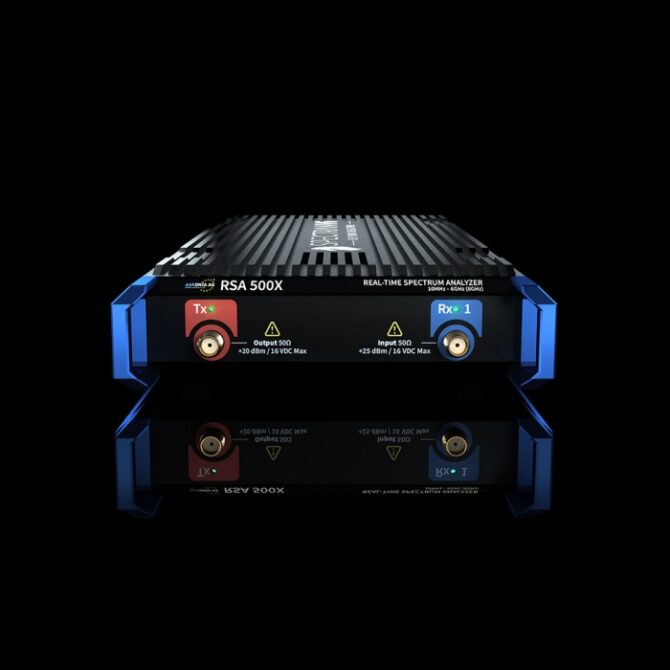

AARONIA SPECTRAN V6 RSA500X middle class USB desktop real-time spectrum analyzer is equipped with a real-time bandwidth of 80MHz (optionally 120MHz) and a vector signal generator. The top-of-the-line V6 2000X model of product series comes with 160MHz RTBW from the factory, which can be optionally expanded to 245MHz. Unit provides compact design with aluminum housing, measureing 210 x 115 x 30mm (850g) and requires little space in the laboratory. Product is suitable for mobile applications (laptop), due to its low power requirements. In real-time mode, the IQ-based POI is 30ns, which can optionally be reduced to a much lower 20ns. Product completes scan from 10MHz to 6GHz (optionally 8GHz) and can be performed in about 20ms, which corresponds to a sweep speed of 300GHz/s (440GHz/s with upgrade). Measurement data is transferred via USB3.x interface as raw I/Q data or FFT data. The second USB connection (BOOST) allows the simultaneous use of the vector signal generator.
