Power entry module’s IEC inlet, circuit breaker is IP 67

Stephen Law

Electronics Power Supply / Management Supply Chain appliance appliance entry entry IEC IEC inlet inlet module module power power

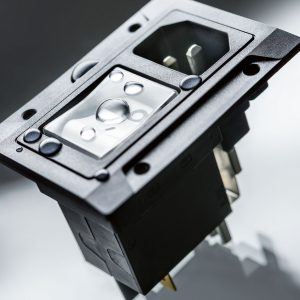

SCHURTER DG11 series compact power entry module combines an IEC appliance inlet with an integrated rocker style circuit breaker.  Products feature a first-of-its-kind IP67 sealed version according to IEC 60529 in addition to IP40 versions. Product series features three mounting variations: front panel snap-in, 1 to 3 mm; front or rear panel screw-mount, with top or side affixed frame. The sealed version is front panel mounted. It has a sealing gasket between the flange and panel, which is tightly mounted with sealed screws. The circuit breaker has a factory mounted protective cover. The inlet is sealed around the frame, as well as around the pins. The inlet is not sealed when plugged, although an IP54 version of the inlet is planned
