Single pole spring type terminal blocks suit compact, low profile devices

April 12, 2016  Stephen Law

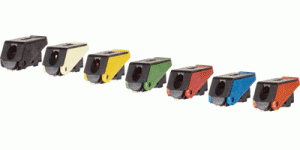

METZ CONNECT Series SM99 and SR99 single pole spring type terminal blocks provide a spring mechanism and aimed at compact and low profile devices. Available in SMT and THR designs, devices utilize a simple push-in technique for wire insertion and a large finger-operated push-button for wire release. Products provide a wire connection indicator and test point for added connection reliability. Device’s compact design allows for space optimization on printed circuit boards. Series SM99 and SR99 single pole spring type terminal blocks are rated up to 9A and accommodate a single wire cable range of 24-16 AWG. The terminal blocks are reflow-capable with a connection direction of 90°. http://www.heilind.com

Heilind Metz Connect
